● High-contrast Touch Screen with Android OS
● Captures 5.0MP high-resolution microscopy images
● Outputs images to TV Screens or Monitors via HDMI Cable
● Supports high-quality image saving in BMP, TIFF, JPG, and other formats

Product description:

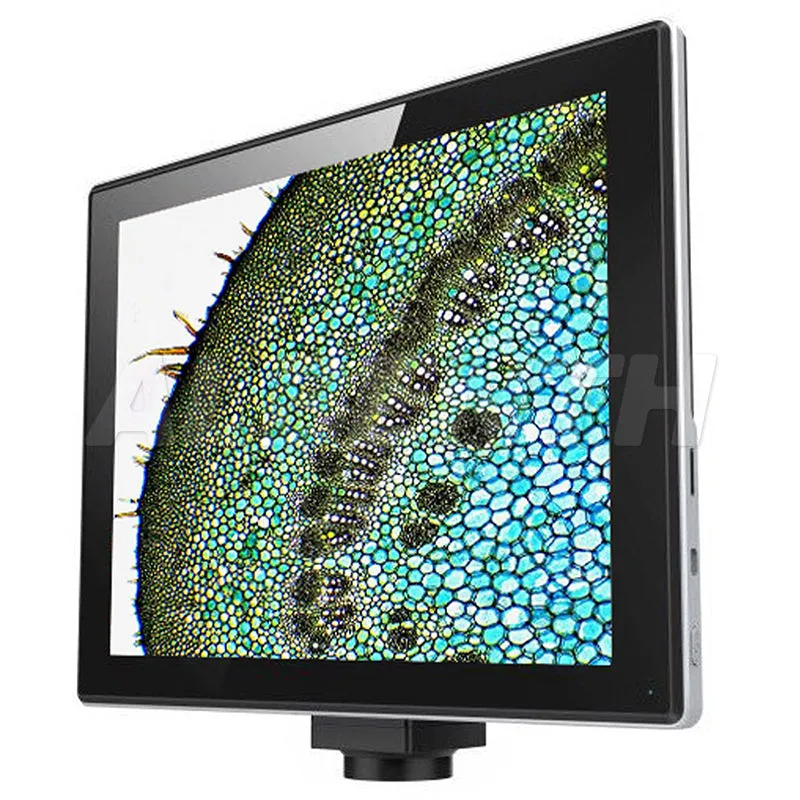

● This is a 9.7" high-resolution (2048*1536) Color LCD digital imaging system.
● Offering great color, smooth images, and a multi-touch screen, this system is ideal for educational and industrial applications.
● It reduces eye fatigue and can be used for multiple users of the same microscope, demonstrations, and teaching purposes with ease. You can adjust white balance, exposure time, and other features easily.
● You can save your pictures to internal memory or an external storage device, like a mini SD Card or USB Flash Drive (optional accessories).

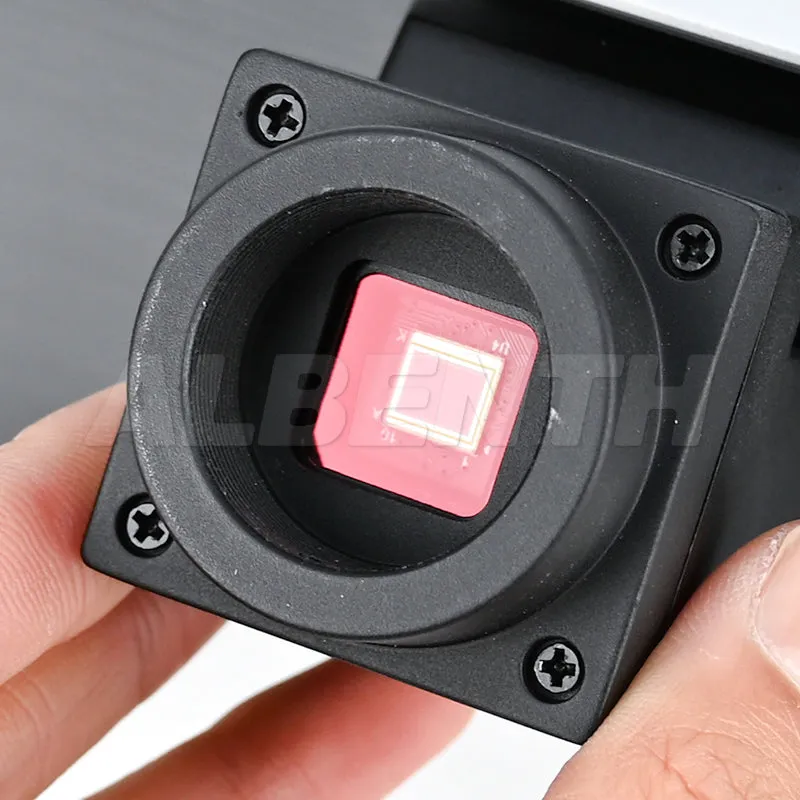

● This system has an integrated 5MP camera which allows for high-speed, high-quality image capture.
● You can also focus through the screen instead of the microscope eyepieces when needed.
● The TouchPad also utilizes a specially designed image-processing chip which allows for dynamic-range improvement and high image-detail quality.
● It provides solid results for microscopy imaging applications.
● It comes with a one-year full-coverage warranty and a lifetime of free software upgrades.
● We have no doubt you will be impressed by the superb resolution and quality this imaging system offers.

Specification:
● Image Sensor: 5.0MP COMS color sensor
● Sensor Size: 1/2.5"
● Pixel Size (resolution): 2.2*2.2um
● Screen type: 5 points touch retina screen
● Screen resolution: 2048*1536

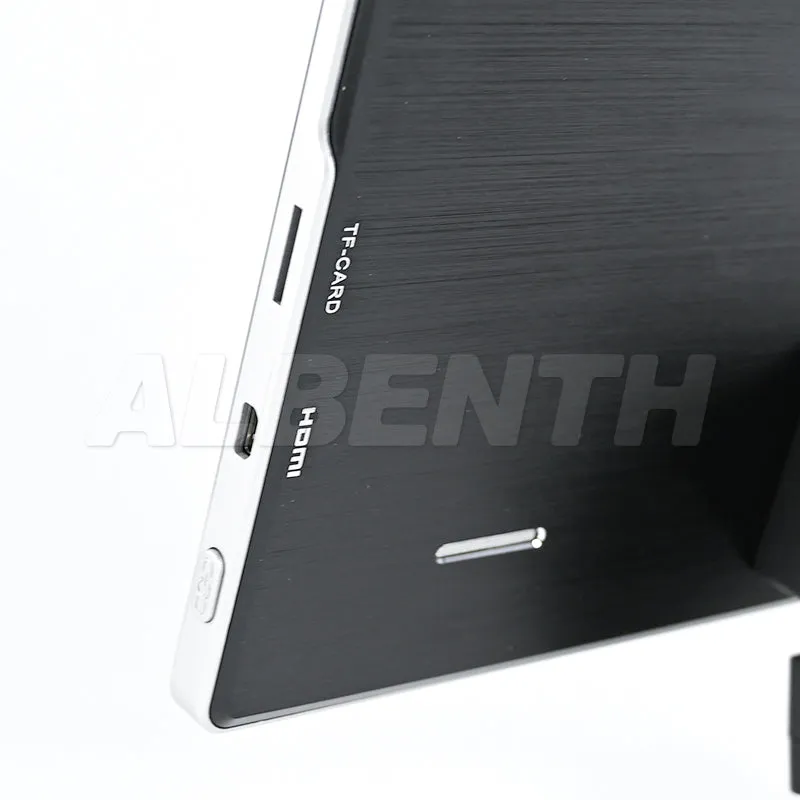

● Output: USB2.0, HDMI, TF card(Max 23G),
● Frame Rate: 2048*1536@15fps
● Operating system: Built-in Android 5.11 System
● Random access memory (RAM): 2G
● Storage: 8G
● Wi-Fi: 2.4GHz/5GHz dual-band Wi-Fi, support 802.11a/b/g/n/ac protocol
● Bluetooth: Bluetooth 4.0
● Image Capture: Support 16 million static image capture
● Video Record: Support 1080P video
● Basic Function: Brightness, contrast, saturation, white balance
● Image adjustment: Exposure, Flicker Suppression, Sharpness, Gamma, Cb/Cr gain adjustment
● Built-in software function:
- Mark function: Point coordinates, Reticle, Coordinates, Text annotation
- Length measuring: Straight length, broken line length, curve line length, the distance between parallel lines,point-line distance
- Center distance of circles: Center distance of circles
- Geometry measurement: Line length, radius setting circle, two points setting circle, three points setting circle, concentric circles
- Geometry area: Polygon and square
● Power: DC-12V/2A
● Camera mount type: C-Mount thread

Features:
UI: Easy mouse control, Android5.1 operation system
Mark function: Point coordinates, Reticle, Coordinates, Text annotation
Length measuring: Straight length, broken line length, curve line length, the distance between parallel lines,point-line distance
Center distance of circles: Center distance of circles
Geometry measurement: Line length, radius setting circle, two points setting circle, three points setting circle, concentric circles
Geometry area: Polygon and square
Image capture: Support 16 million static image capture
Video record: Support 1080P video
Measuring tool: S-EYE

Packing list:
1x 9.7" touch screen built-in 5.0MP camera (C-Mount thread)
1x Power adapter
